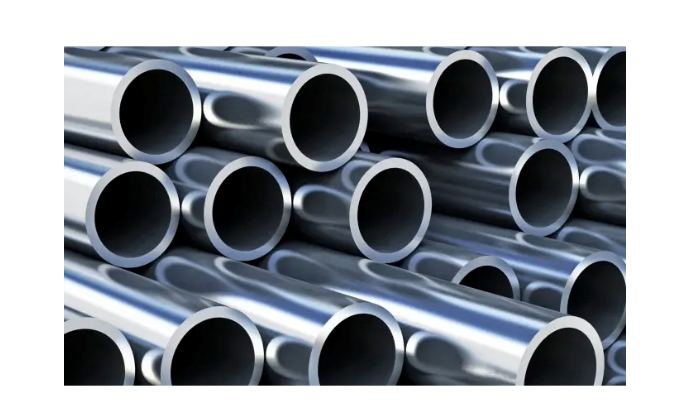

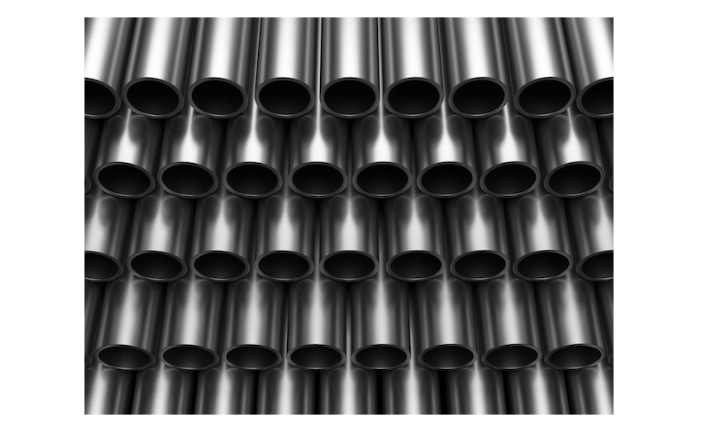

Nickel Tube

Overview

Nickel (Ni) is a chemical element with the symbol Ni, density of 8.9 g/cm³, melting point of 1455∘C, and boiling point of 2730∘C. This ferromagnetic transition metal exhibits exceptional corrosion resistance in acidic and alkaline environments, particularly suitable for reducing media. Notable for its resistance to caustic solutions like potassium hydroxide and sodium hydroxide, making it ideal for ion-exchange membrane caustic soda processes.

Compared to most alloys, nickel demonstrates superior corrosion resistance in fluorine-containing environments. It performs effectively in dry chlorine and hydrogen chloride gas from room temperature to 540°C, and in static hydrofluoric acid solutions. Nickel maintains excellent mechanical properties across wide temperature ranges, with cold workability comparable to mild steel.

Types & Specifications

Grade Standards	N4, N6, etc.
Shapes	Temper: Soft, 1/2H (Half-hard), H (Hard) Outer Diameter (OD): 6mm-150mm Wall Thickness: 0.8-8mm Length: Customized Purity: >99.5%
Standards	GB/T2882-2005, ASTM B163, ASTM B165

Key Features

Excellent Corrosion Resistance: Ideal for condensers in coastal power plants Withstands corrosive environments in petroleum refineries and chemical plants

High-Velocity Erosion Resistance: Tolerates brine flow rates up to 3-4 m/sec Suitable for desalination plants and seawater condenser applications

Applications

Naval Architecture and Marine Engineering

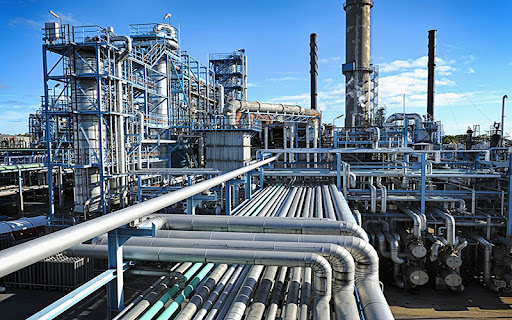

Petroleum and Chemical Industry

Power and Energy

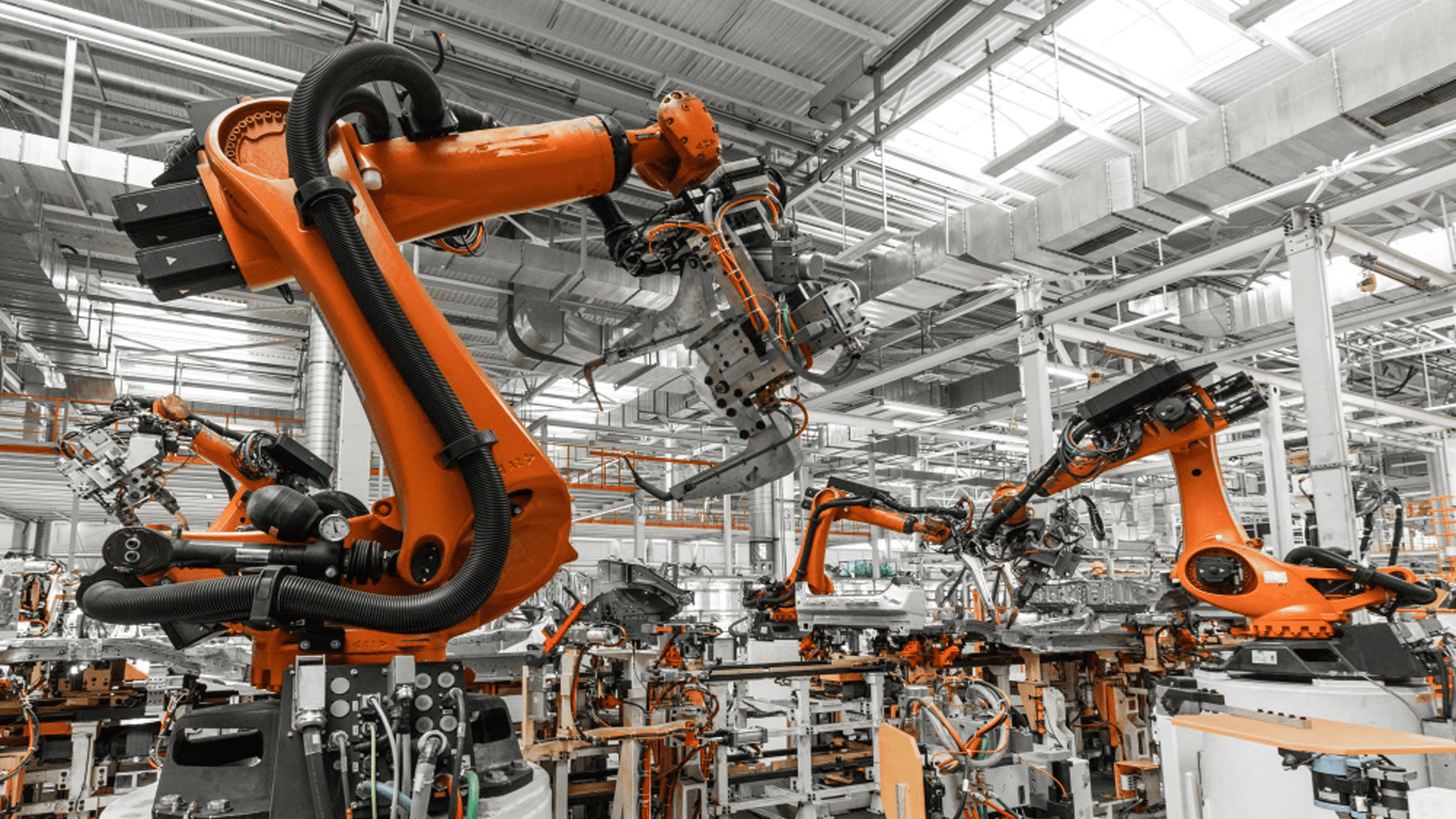

Machinery manufacturing

Production Process
