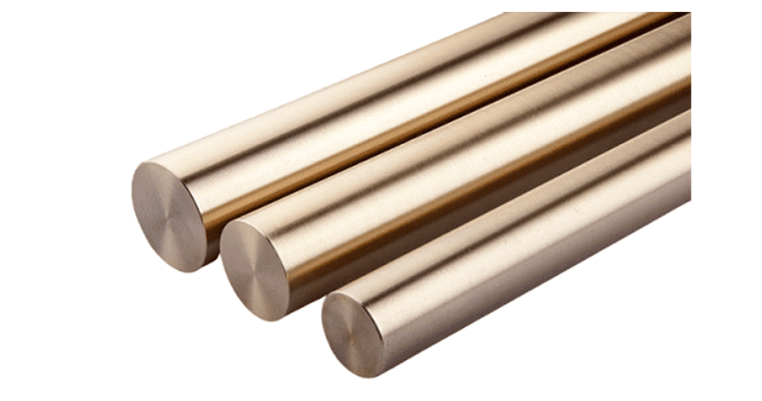

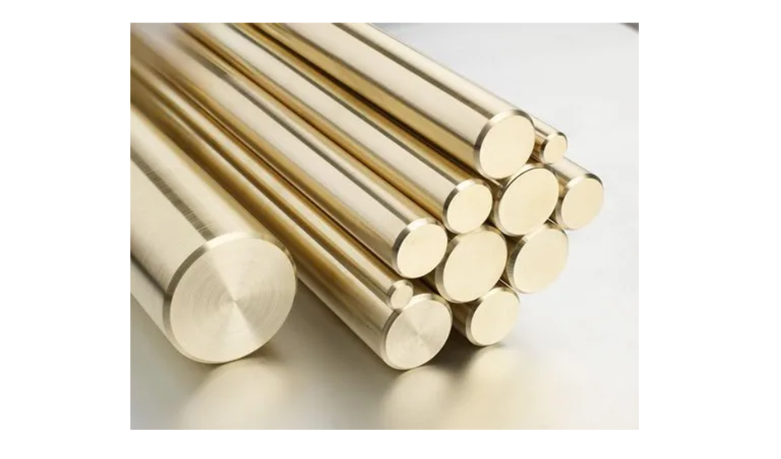

Tin Bronze Rod

Overview

Tin bronze is a copper-based alloy primarily alloyed with tin. Tin content typically ranges from 3%-14%, often with small amounts of other elements like lead, zinc, or phosphorus to improve specific properties (e.g., machinability, wear resistance, castability). Tin bronze offers excellent wear and anti-friction properties, good corrosion resistance, good casting characteristics, good machinability, and relatively high fatigue strength. It is highly suitable for manufacturing bearings, bushings, gears, worm wheels, as well as valves, pipe fittings, etc., in seawater environments.

Types & Specifications

Grade Standards	C90500, C90700, C93200, C94500, C54400
Shapes	Flat, round, square, rectangular
Average Physical Properties	Tensile Strength 310-620 MPa, Yield Strength 250-350 MPa, Elongation 10%-25%, Brinell Hardness: 80-100 Conductivity: 15%-25% IACS Temper: Soft (O), Half-Hard, Hard
Standards	ASTM B139, ASTM B283, YS/T 1785-2025

Key Features

High strength

Excellent weldability & brazeability

Superior wear & anti-friction properties

Excellent weldability & brazeability

Good machinability\Good castability\Good corrosion resistance\Good fatigue strength

Applications

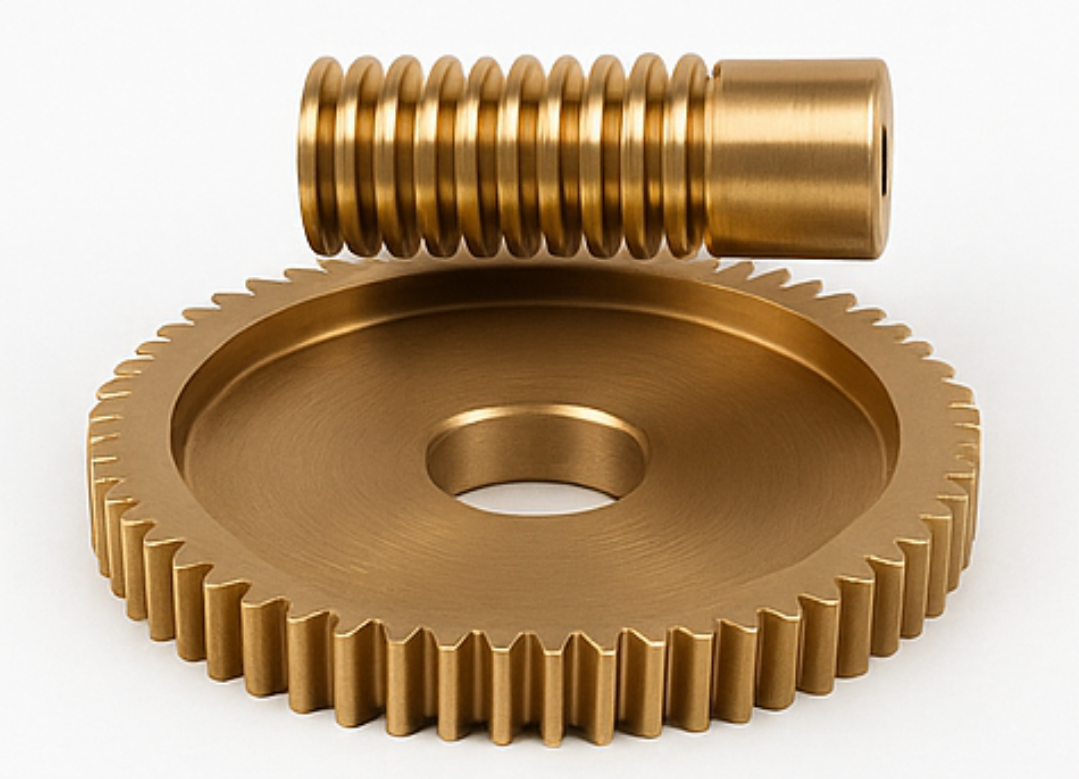

Industrial bearings

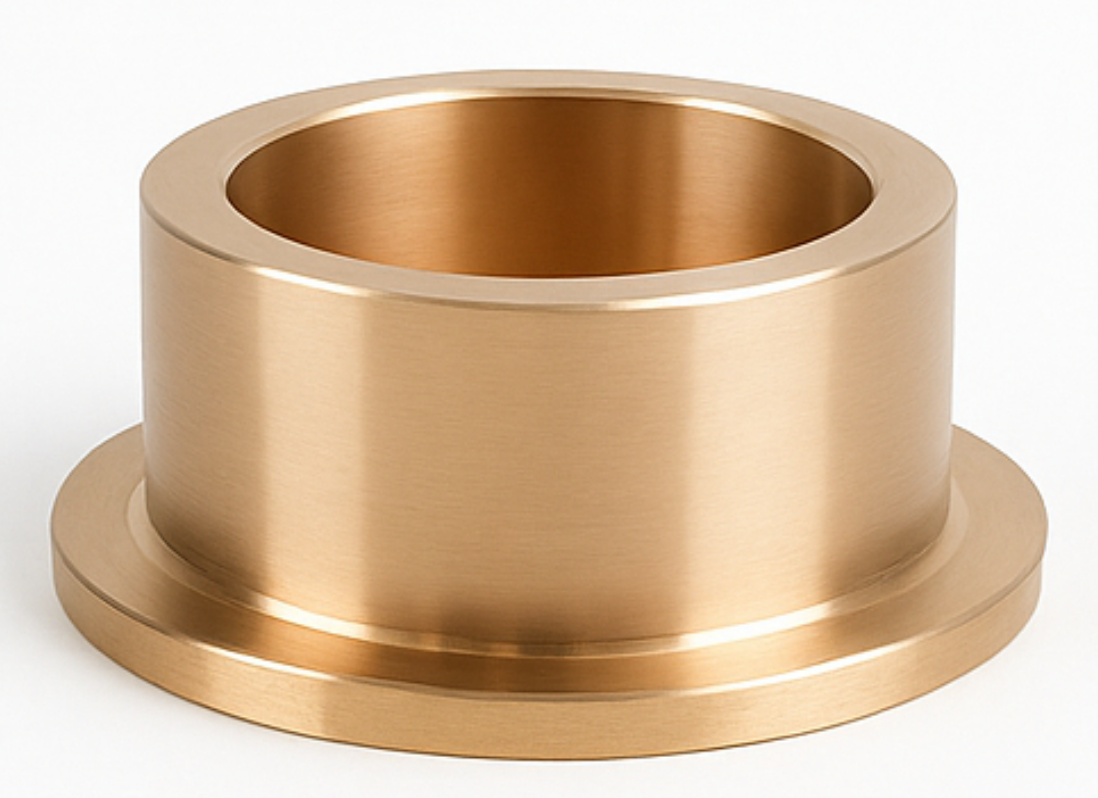

Wear parts

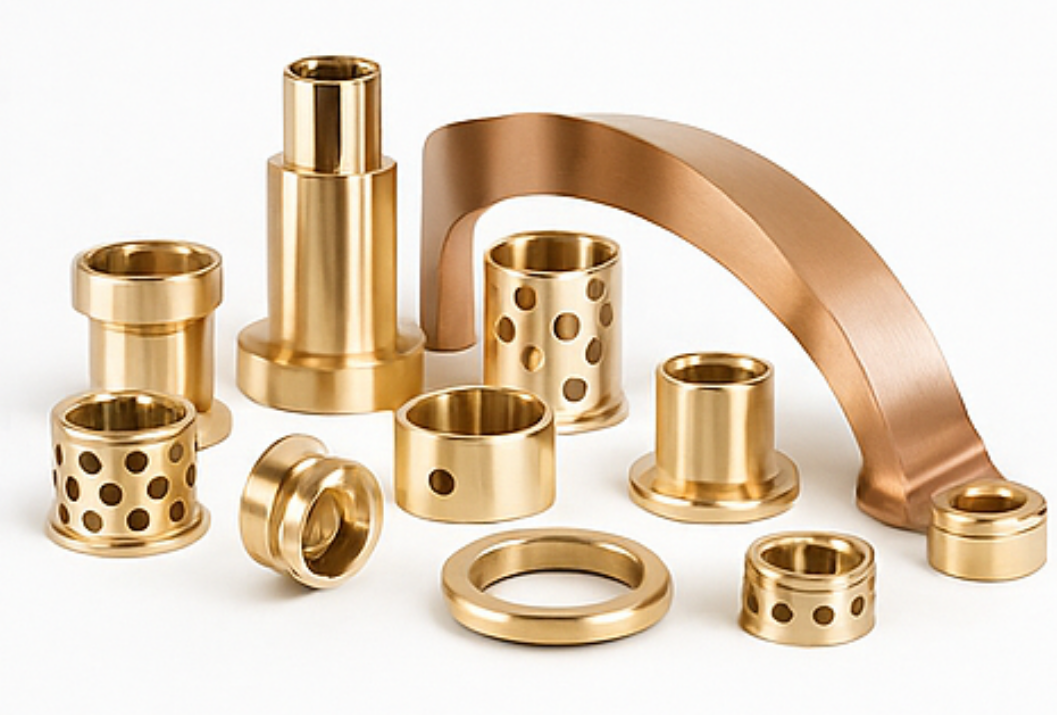

Adjustment nuts

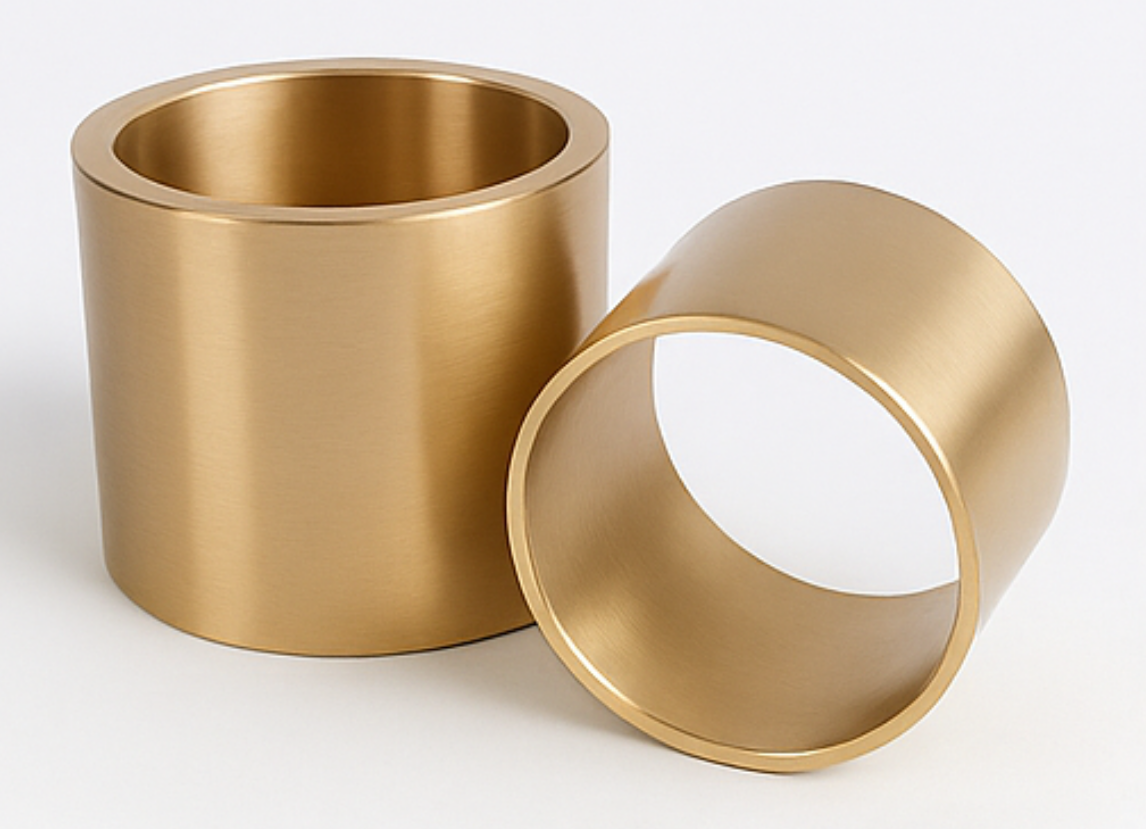

Sleeve bearings

Production Process

1) Ingredients and smelting →2) Casting →3) Extrusion →4) Heat treatment →5) Annealing →6) Straightening →7) Pickling →8) Packaging
