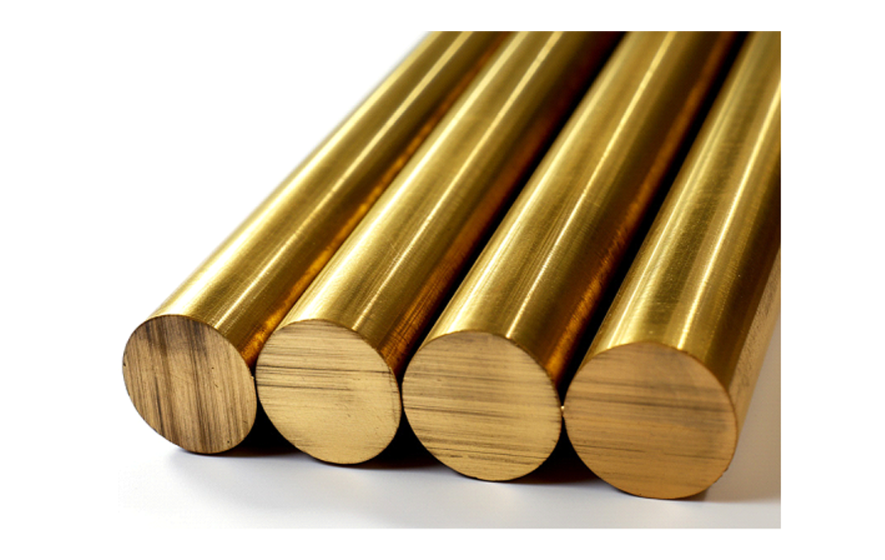

Brass Rod

Overview

A rod-shaped product made from copper-zinc alloy, characterized by its yellow color. Varying zinc content affects coloration:

• 18%-20% Zn: Reddish-yellow

• 20%-30% Zn: Brown

Alloys with additional elements (Pb, Sn, Mn, Ni, Fe, Si) are designated Special Brass, offering enhanced wear resistance, high strength/hardness, superior corrosion resistance, and excellent machinability.

Types & Specifications

Grade Standards	C3601, C3602, C3503, C3771, C46400 ,  C36000, C37700
Diameter Range	1.5 mm - 200 mm
Available Shapes	Round Brass Rods Square Brass Rods Hexagonal Brass Rods Customized Profiles
Properties	Tensile Strength: ≥335 MPa Elongation: ≥20% Hardness: 70-130 HB
Standards	ASTM B453, ASTM B16, ASTM B21, ASTM B138

Key Features

Excellent Wear Resistance

Superior Corrosion Resistance

High Strength and Hardness

Good Hot Forging Ability

Excellent Machinability

Applications

Electronic and electrical industry

Automobiles and ships

Machinery manufacturing and industrial parts

Rail transit

Production Process

1. Material Melting → 2) Casting → 3) Extrusion → 4) Drawing (with intermediate annealing) → 5) Straightening → 6) Pickling → 7) Cutting to Length
