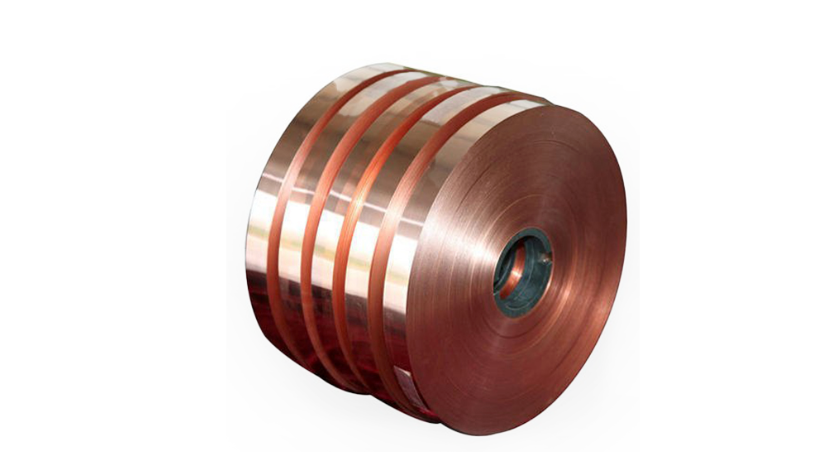

Phosphor bronze belt

Overview

A bronze alloy primarily alloyed with tin (2-8%) and phosphorus (0.1-0.4%), with copper constituting the remainder. Industrially engineered for precision elastic components. Its sheets and strips are used in electronic/electrical springs, switches, connector terminals, switch contacts, diaphragms, fuse clips, and bushings - particularly suited for high-performance flexible springs. Also applied in gears, bearings, bushings, sleeves, blades, and general mechanical parts.

Types & Specifications

Grade Standards	C5191, C5210, C5102, C5240, etc.
Chemical Composition	a) C5191: Cu + Sn + P > 99.5%; Sn: 4.5–5.5%; P: 0.03%–0.35% b) C5210: Cu + Sn + P > 99.7%; Fe < 0.1%; Pb < 0.05%; Zn < 0.2%; Sn: 7.0–9.0%; P: 0.03%–0.35%
Mechanical Properties	Elastic Modulus: 115 GPa Tensile Strength: 350-900 MPa Elongation: ≥50%
Tempe	1/2H, 3/4H, H, EH, SH
Dimensions	Thickness 0.15–4.0 mm; Width 8–610 mm

Key Features

High Elasticity/Fatigue Resistance/Plating Compatibility

Electroplating compatibility

Excellent welding properties

Superior cold-working capabilities

Good Thermal & Electrical Conductivity

Outstanding Wear & Corrosion Resistance

Applications

Automotive industry

Rail transit

Electronic machinery

medical equipment

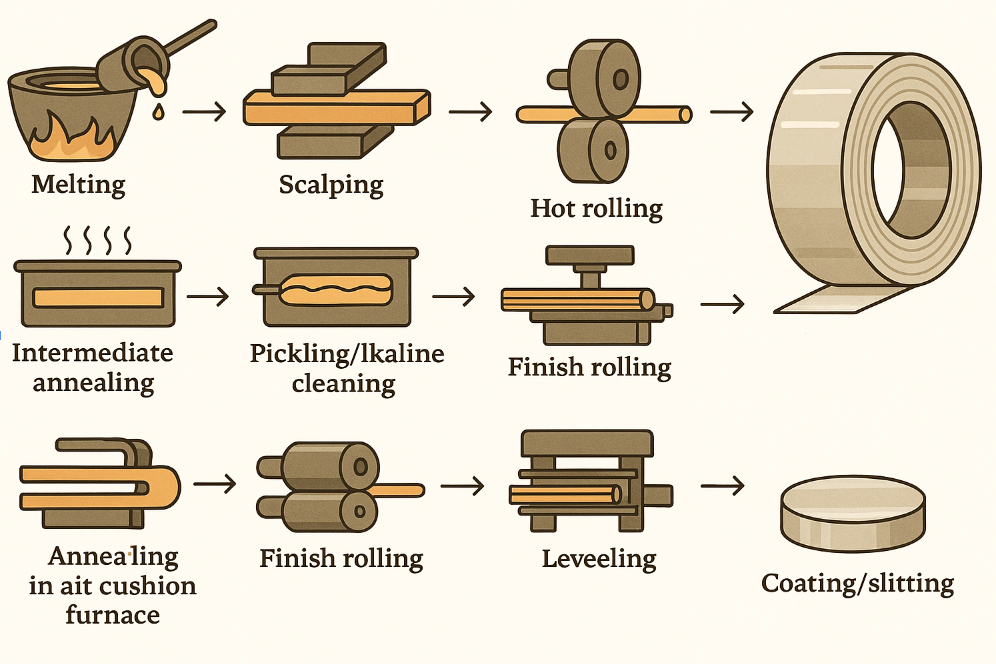

Production Process

1. Melting Furnace →Continuous Casting & Slab Casting Lines →Hot Rolling Mills →Reversible→Cold Rolling Mills →Finish Rolling Mills
